Hydraulic Power Unit

FUNCTIONAL DATA SHEET

Functional Description: –

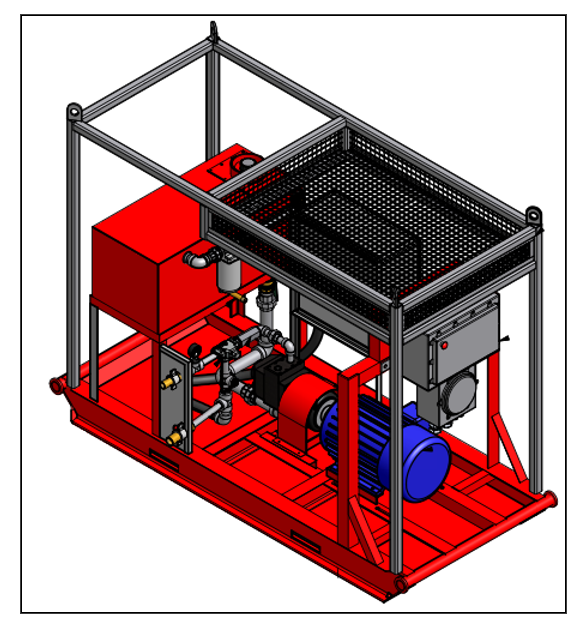

The Hydraulic power units is designed to provide a hydraulic system pressure up to 3500 PSI. It is a skid mounted electric motor driven Hydraulic power unit. The unit consists of the electric Motor and starter, hydraulic reservoir with hydraulic pump and pressure regulating components; an air cooled radiator type heat exchanger, starter and hoses for interconnection to the tong or other equipment to be powered. The unit components are installed on a skid having forklift lift provision and a centrally-located lifting eye facilitates hoisting the unit to the drill floor or to other desired location

Technical Features: –

1. The unit is equipped explosion-proof electric motor 40 hp., power 50 A, 415 V, 3-phase, DGMS Approved.
2. Hydraulic System It provides a workflow 26 GPM (98.42 LPM) With a maximum operating pressure of 3500 psi (246.00 kg / cm²).
3. Tank capacity of 100 gallons equipped with a level – sensor switch hydraulic fluid in the reservoir, ensuring the continuity of the action.
4. Hydraulic Power installation uses a series of mesh filters on the suction side, on the discharge side, and filters recycle loop, providing purity hydraulic flow. This will ensure long service life all components of your hydraulic system.
5. Hydraulic power plant is equipped with explosion-proof cable system remote start with a range of 100 feet.
6. Hydraulic Power Unit equipped with a submersible heating element to maintain the desired temperature of the hydraulic fluid in the harsh climatic conditions.

Technical Data
