About Us

CANNY ENGINEERING SERVICES (CES) is based in Greater Noida (Delhi NCR-India) established in August 2018. CES is manufacturer, supplier and service provider in oilfield sector and other engineering sector, our product range is related but not limited to oil and gas sector.
The company is run by a team having 25+ years’ experience in manufacturing of oil and gas products, the moto of team is to provide final approved and validated products only to customer. The team is working regularly on improvement of quality and delivery for better customer experience / for continual improvement in customer experience.

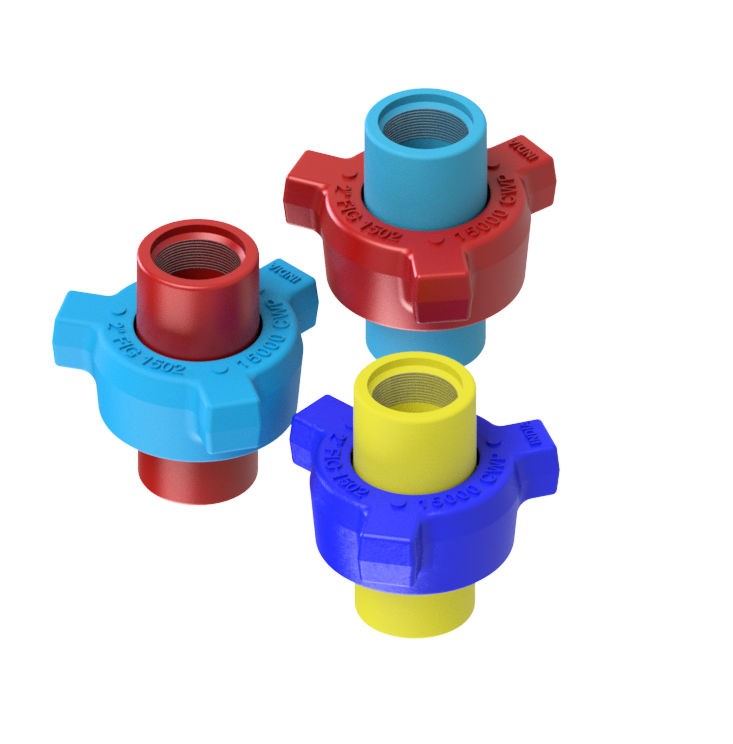

Hammer Unions

  • Hammer union range in size from 1” to 12”.
  • Manufactured by Steel forgings using appropriate materials to specific pressure ratings.
  • Components of the same size and figure number are interchangeable with OEM.
  • Full traceability documentation for each component.
  • Unions are available in a choice of end connections. API line pipe threads are standard, Butt weld ends, and socket weld ends can be provided.
  • H2S service is available and all H2S service conforms to the latest NACE MR 0175.

Pup Joints

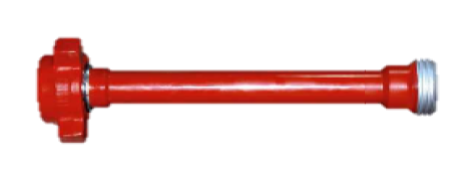

Integral Pup Joints

  • Integral Pup joints are made of high-quality alloy steel.
  • Detachable wing union end connections enable fast, easy make-up and break-out of temporary flow lines.
  • Pup joints are hydrostatically tested at 1.5 times the rated cold working pressure.
  • Available from 2" to 3" sizes, lengths for pup joints range from 2 feet to 12 feet.
  • Cold Working pressure: 10,000 PSI for H₂S service and 15,000 PSI for Standard Service.

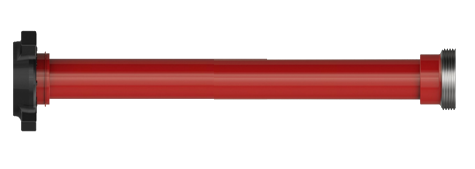

NPST Pup Joints

  • NPST Pup joints are made of high-quality seamless pipes.
  • Available from 2" to 3" sizes, lengths for pup joints range from 2 feet to 20 feet.
  • Cold Working pressure: 10,000 PSI for H₂S service and 15,000 PSI for Standard Service.

Swivel Joint

Long Radius Swivel Joint

Available in sizes 2” &3" up to 15,000 PSI

  • Long Sweep Joints have long radius elbows for better flow characteristics.
  • Recommended for high pressure applications.
  • Field repairable and easy to use..



Short Radius Swivel Joint

  • Smooth rotation without sacrificing strength and integrity of steel.
  • Standard Swivel Joints are provided with API line pipe threads.
  • Other end connections are available on request.

STEEL HOSE LOOPS

  • Available in 2” and 3” of nominal pipe sizes.
  • Available in Standard and Sour Service.
  • Long Radius Steel hoses are suitable for pressures up to 15,000 psi.
  • Short Radius Steel hoses are suitable for pressures up to 6,000 psi.

  • Long Radius Steel Hoses


  • Short Radius Steel Hoses

INTERGRAL FITTINGS

Adapters and Crossover are available in high quality forged construction with threaded, integral & Welded hammer lug union end connection. Also available in different configurations on customer request.

Flanges

Manufacturer of various types of Flanges and pipe fittings required in the oilfield, Petrochemical and different processes industries, Precision matching and unparalleled dedication to quality excellence which has kept us in the fore front of oil industry. We also manufactured adapters flanges which are available in various bore sizes and with quick union connection compatible, Flange/Adapters are supplied for standard or H2S service and working pressure up to 15,000 PSI.

CROSSOVERS

Adapters and Crossover are available in high quality forged construction with threaded, integral & Welded hammer lug union end connection. Also available in different configurations on customer request.

Plug Valve & Repair Kit

  • Plug Valves are in 2” x 1”, 2” x 2” and 3” x 3” configurations.
  • H2S service is used up to 10,000psi and tested at 15,000psi.
  • Valve Parts are Interchangeable with most major designs.
  • Suitable for a variety of high-pressure applications such as fracturing, cementing, acidizing, etc.

CHOKE

Adjustable and positive choke tees are primarily used in choke manifolds, flow thru manifolds and test manifolds. Various forged-body configurations are available in 2-inch size, for up to 15000 psi cold working pressure. These Adjustable and Positive Chokes are also available in sour gas configuration.

  • 2” and 3” Fig 1502 MXF with 3/4”, 1” and 2” Orifice.
  • Forged alloy steel body, stainless steel, and tungsten carbide parts.
  • Suitable for a broad range of applications including wellheads, production manifolds, well testing, steam injection, choke and kill manifolds, and well clean operations, etc.

CHOKE MANIFOLD

CES manufacture a range of Manifolds for applications like choke & kill lines, standpipe and high-pressure pumping in sizes 2” and pressures up to 15,000 PSI. Customized 5 valve and 9 valve manifolds manufactured.

Mettalic Gasket

  • Metallic Ring Joint Gaskets are suitable for high-pressure and high-temperature applications.
  • The gaskets are available in R, RX, BX styles and in oval/octagonal profiles.
  • API 6A, ASME B16.20 compliant.

Pipe Nipples

  • Material:
    • Carbon steel Seamless steel Pipe conforms to ASTM A 106 GR. B.
    • Stainless steel Pipe conforms to ASTM/ASME A182.
  • Dimensions: Seamless Steel Nipple Design / Dimensions conform to ASTM A733. Contact CES for exact dimensional information.
  • Threading: NPT Threads on Nipples conform to ASME B1.20.1.
  • Bull Plugs & Swage Nipples Material: Carbon Steel / Alloy Steel / Stainless Steel.
  • Threading for Bull Plugs & Swage Nipples: Line Pipe – API 5B, NPT – ASME B1.20.1 as applicable.
  • Weld Bevel: ASME B16.9.
  • Dimensions for Bull Plugs & Swage Nipples: MSS SP-95.
  • Coating: Zinc Electroplating / Paint as applicable.
  • Marking: Manufacturer’s Symbol, Material Grade, Heat Code.
  • Standard Length: Standard length of pipe nipples as per the table below. Contact CES for custom lengths.
  • NACE MR-01-75: As applicable.
Pipe Nipples

Couplings, Hex Plugs & Bushings

  • Material: Carbon Steel / Alloy Steel / Stainless Steel.
  • Threading: NPT – ASME B1.20.1 as applicable.
  • Dimensions: ASME B16.11.

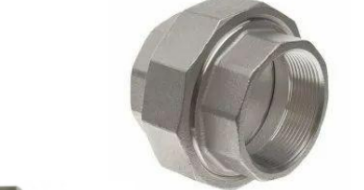

Hex Unions

Hex Unions (Threaded / Socket Head)

  • Material: Carbon Steel / Alloy Steel / Stainless Steel.
  • Threading: NPT – ASME B1.20.1 as applicable.
  • Dimensions: ASME B16.11.
  • Pressure: 3000 PSI, 6000 PSI.
Grease Fitting

High Pressure Grease Fitting / Bonnet Grease Fittings

  • Material: Carbon Steel / Alloy Steel / Stainless Steel.
  • Threading: NPT – ASME B1.20.1 as applicable.
  • Pressure: 10000 PSI, 15000 PSI.
  • Application: Plug Valve, Gate Valve.
Grease Fitting
